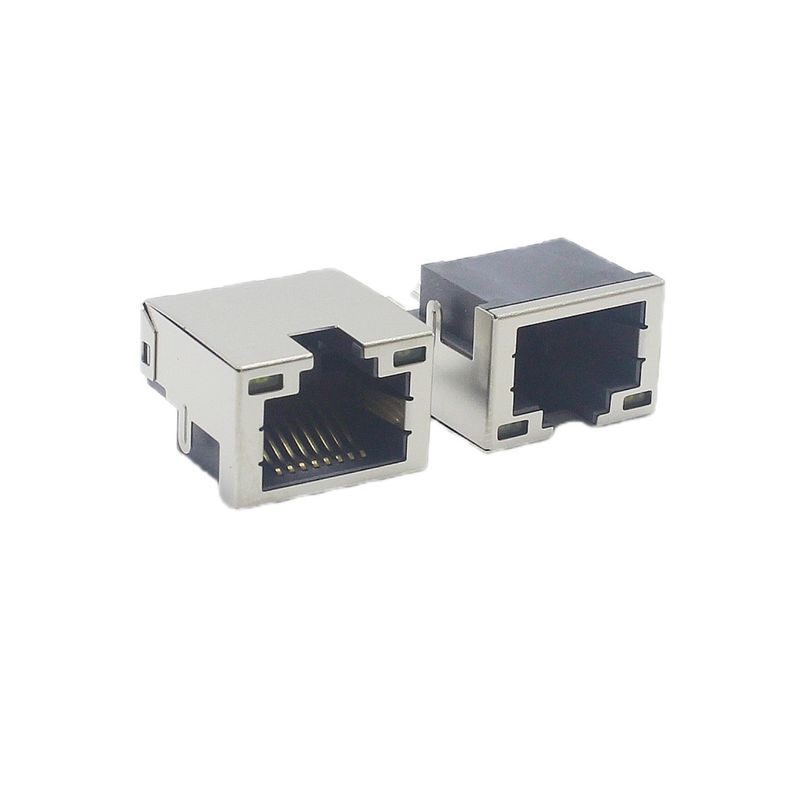

Gold Plated RJ45 Female Connector Socket Network Lan Ethernet Coupler
  • Gold Plated RJ45 Female Connector Socket Network Lan Ethernet Coupler
  • Gold Plated RJ45 Female Connector Socket Network Lan Ethernet Coupler
  • Gold Plated RJ45 Female Connector Socket Network Lan Ethernet Coupler
  • Gold Plated RJ45 Female Connector Socket Network Lan Ethernet Coupler

Gold Plated RJ45 Female Connector Socket Network Lan Ethernet Coupler

Place of Origin China
Brand Name Jinze
Certification SGS/ROHS
Model Number RJ29A-LBA10-TRA
Product Details
Material:
LCP UL94V-0
Color:
Black
Gender:
Female (Receptacle)
Application:
Information Technology Sector/ Automotive Industry/ Gaming Consoles
Number Of Contacts:
8
Number Of Ports:
1 Port
Current Rating:
1.5AMP
Mounting Angle:
Right Angle
Mounting Style:
PCB Mount
Factory Pack Quanity:
100pcs Per Tray
Highlight:

Lan RJ45 Female Connector Socket

,

RJ45 Female Connector Socket Coupler

,

Lan rj45 smt connector

Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiation
Packaging Details
Tray Packaging
Delivery Time
15-25 Days
Payment Terms
T/T
Supply Ability
80000pcs/ Day
Product Description

Speciafications



Current Rating 1.5AMP
Contact Resistance 40mΩ Max
Voltage Rating 125V AC MIN.(RMS)
Insulation Resistance 1000mΩ Min. AT 500V DC.
Operation Temperature -40℃ to +85℃
Contact Material Phosphorous Bronze T=0.30mm
Contact Plating Full Gold (1'-50')
Insulator Material LCP



Drawings

Gold Plated RJ45 Female Connector Socket Network Lan Ethernet Coupler 0

2D Drawings:

RJ29A-LBA10-TRA.pdfif you need the Drawing, pls download it



What's RJ45?

RJ45, or Registered Jack 45, is a standardized physical connector used primarily for Ethernet networking. It's an 8-position, 8-contact (8P8C) modular plug and socket commonly used for connecting computers, routers, switches, and other networking devices. The RJ45 connector is designed to work with twisted pair cables, such as Category 5 (Cat5), Category 5e (Cat5e), Category 6 (Cat6), and Category 6A (Cat6A) cables.


The connector is often referred to as an "Ethernet jack" or "Ethernet plug" because of its widespread use in Ethernet networks. The RJ45 connector is used to transmit data at speeds ranging from 10 Mbps (10BASE-T) up to 10 Gbps (10GBASE-T), depending on the type and quality of the twisted pair cable being used.
