RJ45 Female Connector Socket
>
|
| Place of Origin | China |
| Brand Name | Jinze |
| Certification | ISO9001/ROHS/CE/FCC |
| Model Number | RJ31A-LBA10-TRA |

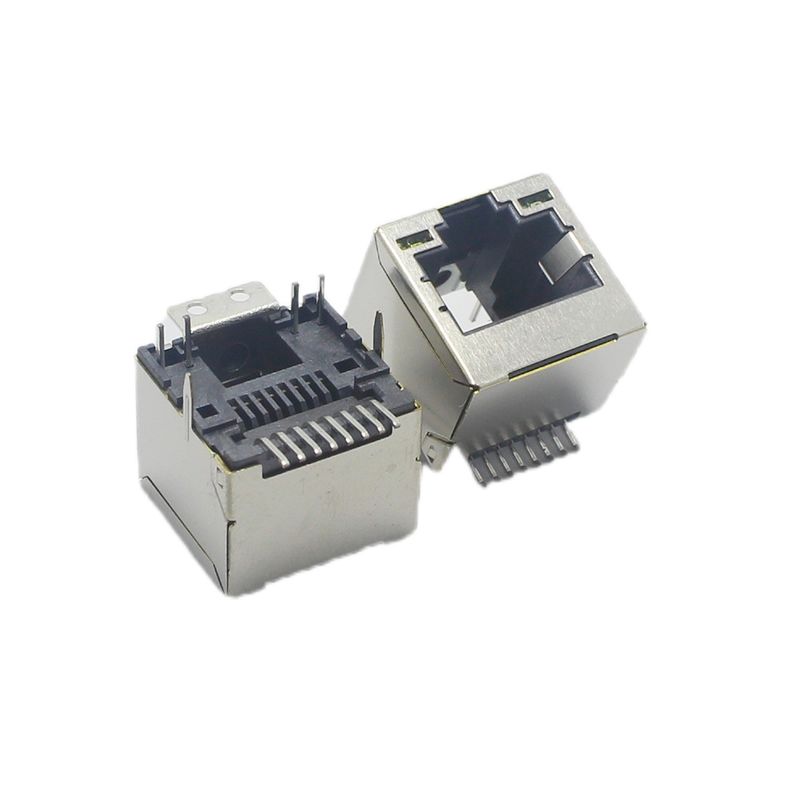

Vertical SMT RJ45 Female Connector Socket Modular Jack OEM
Speciafications
| Current Rating | 1.5AMP |
| Contact Resistance | 40mΩ Max |
| Voltage Rating | 125V AC MIN.(RMS) |
| Insulation Resistance | 500mΩ Min. AT 100V DC. |
| Operation Temperature | -40℃ to +85℃ |
| Contact Material | Phosphorous Bronze |
| Contact Plating | Full Gold |
| Insulator Material | LCP |
Drawings
2D Drawings:
RJ31A-LBA60-TRA.pdf, if you need the Drawing, pls download it
What's RJ45?
RJ45, or Registered Jack 45, is a standardized physical connector used primarily for Ethernet networking. It's an 8-position, 8-contact (8P8C) modular plug and socket commonly used for connecting computers, routers, switches, and other networking devices. The RJ45 connector is designed to work with twisted pair cables, such as Category 5 (Cat5), Category 5e (Cat5e), Category 6 (Cat6), and Category 6A (Cat6A) cables.
The connector is often referred to as an "Ethernet jack" or "Ethernet plug" because of its widespread use in Ethernet networks. The RJ45 connector is used to transmit data at speeds ranging from 10 Mbps (10BASE-T) up to 10 Gbps (10GBASE-T), depending on the type and quality of the twisted pair cable being used.
