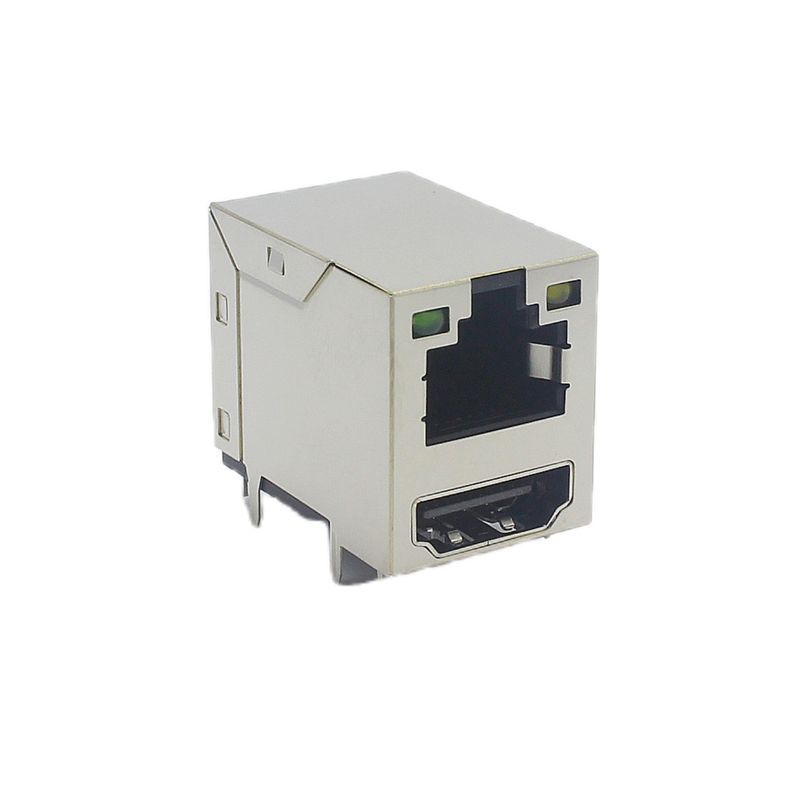

RJ45 Female Connector Socket
>
|
| Place of Origin | China |
| Brand Name | Jinze |
| Certification | ISO9001/ROHS/CE/FCC |
| Model Number | RJ20A-PBA10-TRA |
Speciafications
| RJ45 Materials | |
| Housing: | High Temperature Thermo Plastics, PBT, BK, UL94V-0 |
| Insert Base: | High Temperature Thermo Plastics, PBT, BK, UL94V-0 |
| Contact: | Copper Alloy. Flash Gold Plating Overall |
| Shell: | Copper Alloy. Nickel Plating Overall |
| HDMI Materials: | |
| Cover: | High Temperature Thermo Plastics, PBT, BK, UL94V-0 |
| Housing: | High Temperature Thermo Plastics, PBT, BK, UL94V-0 |
| Shell: | Copper Alloy, Nickel Plating Overall |
| Contacts: | Copper Alloy, Nickel Plating Overall |
| Color: | Black |
| Contacts Plating: | Tin Plating 100U" on solder tail area |
| Voltage Current Rating | 1.5 AMP. 30V AC. |
| Contact Resistance | 40MΩ Max, |
| Dielectric Withstanding Voltage: | 500V AC |
| Insulation Resistance: | 1000MΩ Min. |
| Operating Temperature | -45 °c to +85°c |
Drawings
2D Drawings:
RJ20A-PBA10-TRA.pdf,if you need the Drawing, pls download it
Our advantage
1. Professional connector manufacturer, a variety of styles to choose from, providing the best EXW price! 100% QC shipping inspection, quality assurance!
2. We can provide free samples for you to test!
3. We support OEM/ODM. If the product is not what you want, please contact us directly, we will make the best solution for you for free!
4. Large-scale production workshop, fast delivery, immediate delivery, guaranteed delivery.
5. One-to-one after-sales service, please feel free to contact us if you have any questions.
