IP67 Waterproof Connectors
>
|
| Place of Origin | China |
| Brand Name | Jinze |
| Certification | ROHS/CE |
| Model Number | MP01C-6BB0A-BRA |
Product Description

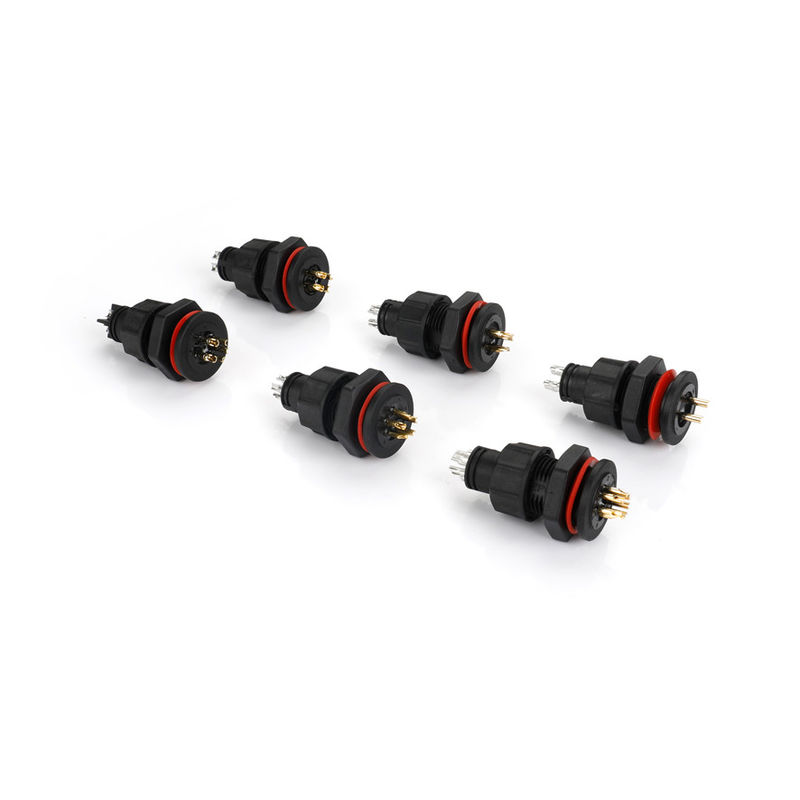

PA9T Gold Plated IP67 Waterproof Male Cable Connectors M13 4 Pins
PA9T gold-plated IP67 waterproof male cable connectors with M13 size and 4 pins are commonly used in various industries and applications, including outdoor lighting, industrial automation, marine equipment, and telecommunications. They provide a reliable and waterproof connection between cables, ensuring protection against moisture, dust, and other environmental factors.
When selecting these connectors, it's important to consider factors such as the specific electrical requirements, cable compatibility, IP rating, mechanical dimensions, and the number of pins needed to ensure a proper fit and reliable performance in the intended application.
Specifications:
| Current Rating | 6 AMPS |
| Voltage Rating | DC 60V |
| Conductor Diameter | Φ1.5 |
| Adapter Wire | 18AWG |
| Insertion & Retention Force | 3.5KG / 1.5KG |
| Contact Material | Brass |
| Contact Plating | Full Gold Finished |
| Insulator Material | PA9T |
Images
2D Drawing
MP01X-6BB0A-BRA.pdf , This drawing is for 2P to 7P, if you need the Drawing, pls download it!
Please Note:
Free for Plastic Nut, but without Assembly
