IP67 Waterproof Connectors
>
|
| Place of Origin | China |
| Brand Name | Jinze |
| Certification | ROHS/CE |
| Model Number | MP03C-6BB0A-BRA |
Product Description

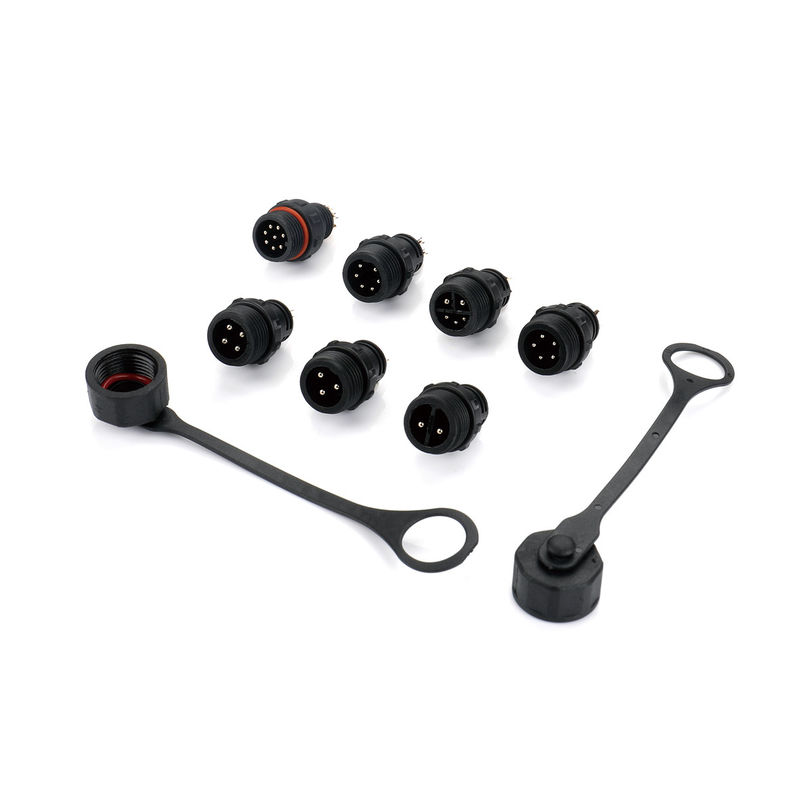

6AMPS IP67 Waterproof Connectors 4Pin Male Female 60V ODM
6Amps IP67 waterproof connectors are electrical connectors designed to handle a current of up to 6 Amperes (A) and provide a high level of protection against water and dust ingress. The IP67 rating indicates that the connectors offer a high degree of resistance to water and are completely protected against the entry of solid particles such as dust.
Waterproof connectors with an IP67 rating are commonly used in applications where there is a need for electrical connections that can withstand exposure to moisture, liquids, or outdoor environments. They are particularly useful in industries such as automotive, marine, outdoor lighting, industrial equipment, and telecommunications, where reliable and waterproof connections are essential.
Specifications:
| Current Rating | 6 AMPS |
| Voltage Rating | DC 60V |
| Conductor Diameter | Φ1.5 |
| Adapter Wire | 18AWG |
| Insertion & Retention Force | 3.0KG / 1.5KG |
| Contact Material | Brass |
| Contact Plating | Full Gold Finished |
| Insulator Material | PA9T |
Images
2D Drawing
MP03X-6BB0A-BRA.pdf, This drawing is for 2P to 7P, if you need the Drawing, pls download it!
Please Note:
Free for Plastic Nut, but without Assembly
