IP67 Waterproof Connectors
>
|
| Place of Origin | China |
| Brand Name | Jinze |
| Certification | ROHS/CE |
| Model Number | MP03A-6BB0A-BRA |
Product Description

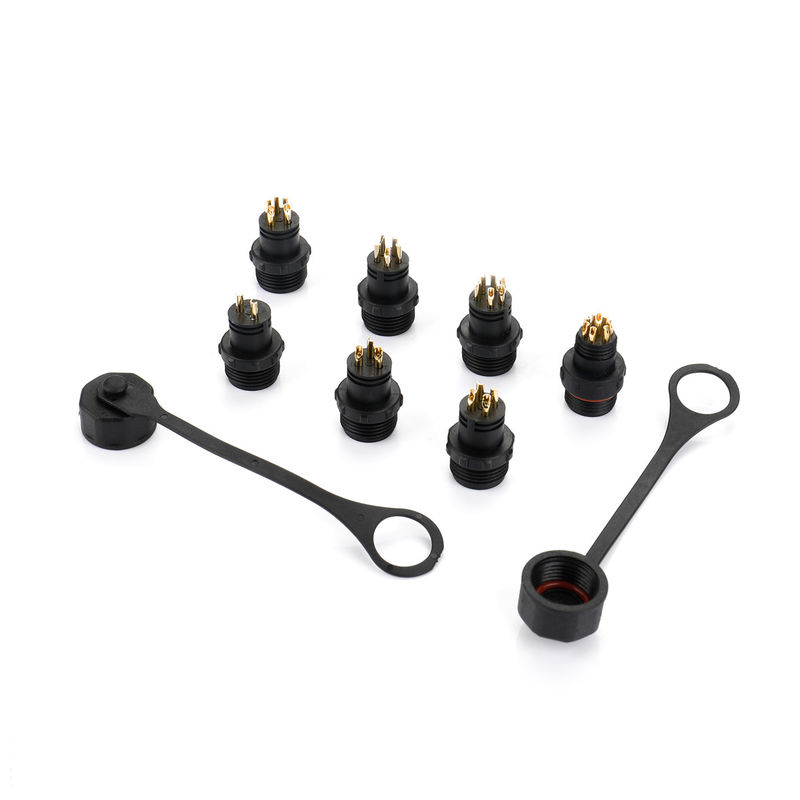

Male IP67 Waterproof Connectors 2Pins Bulkhead Mount Plug
Here are some key features of the M13 2-pin male-female waterproof bulkhead connector:
1. M13 Size: The connector has a diameter of approximately 13 millimeters (M13), making it compact and suitable for applications with limited space.
2. 2 Pins: The connector consists of two pins, one male and one female, allowing for the transmission of electrical signals or power between the cable and the device or enclosure.
3. Waterproof and Bulkhead Design: The connector is designed to provide waterproof protection, ensuring that the connection remains sealed and protected against moisture and dust ingress. The bulkhead design allows for it to be mounted on a panel or enclosure, providing a secure and watertight connection point.
4. Cable Compatibility: The connector is typically designed for use with specific cable types, and it may have features such as strain relief or cable glands to ensure a secure connection and protect the cable from strain or damage.
Specifications:
| Current Rating | 8 AMPS |
| Voltage Rating | DC 60V |
| Conductor Diameter | Φ1.5 |
| Adapter Wire | 14AWG |
| Insertion & Retention Force | 3.0KG / 1.5KG |
| Contact Material | Brass |
| Contact Plating | Full Gold Finished |
| Insulator Material | PA9T |
Images
2D Drawing
MP03X-6BB0A-BRA.pdf, This drawing is for 2P to 7P, if you need the Drawing, pls download it!
Please Note:
Free for Plastic Nut, but without Assembly
