USB Socket Connector
>
|
| Place of Origin | China |
| Brand Name | Jinze |
| Certification | SGS/ROHS |
| Model Number | UB04B-PBA70-TRA |

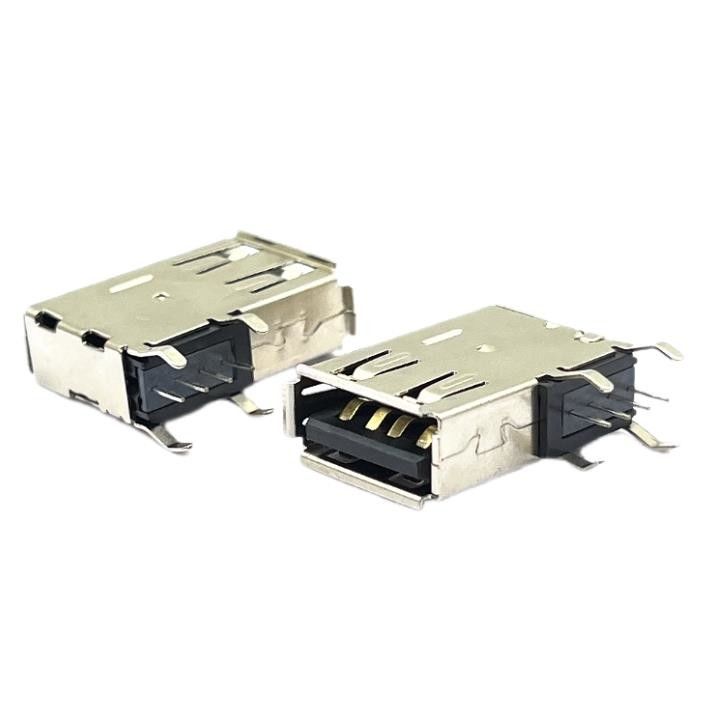

ODM 500V USB Socket Connector Usb2.0 With AU 1U Contact Plating
Specifications:
| Housing | PBT UL94V-0 Black |
| Cover | LCP UL94V-0 Black |
| Contact | Brass |
| Shell | SPCC |
| Contact Plating | Contact Area: Au 1u" |
| Solder Area: Bright Tin 50u" Plated | |
| Ni 50u" Min Underplated | |
| Shell Plating | Nickel 50u" Min Plated Overall |
| Current Rating |
1.5A |
| Contact Resistance | 30mΩ Max |
| Insulation Resistance | 1000mΩ Min at DC 500V |
| Dielectric Withstanding Voltage | AC 500V For 1 Minute |
| Mating Force | 3.57KGF Max. |
| Unmating Force | 1.02KGF Min. |
| Durability | 1500 Cycles |
| Operating Temperature | -40ºC~+85ºC |
Images:
UB04B-PBA70-TRA.pdf, if you need the Drawing, pls download it
A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.
Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
