| Place of Origin | China |
| Brand Name | Jinze |
| Certification | SGS/ROHS |
| Model Number | UB08B-9BA4A-RHA |
Specifications:
| Housing | PA9T UL94V-0 Black |
| Cover | PA9T UL94V-0 Black |
| Contact | C2680, T=0.20mm |
| Shell | SUS201, T=0.3mm |
| Contact Plating | Contact Area: Au 15u" |
| Solder Area: Matte Tin 80u" Plated | |
| Ni 50u" Min Underplated | |
| Shell Plating | Ni 50u" Min Plated Overall |
| Contact Resistance | 30mΩ Max for VBUS and GND |
| 50mΩ Max for All other contacts | |
| Insulation Resistance | 100mΩ Min |
| Dielectric Withstanding Voltage | 100VAC R.M.S |
| Mating Force | 35N(3.57Kgf) Max. |
| Extraction Force | 10N(1Kgf) Min. |
| Operating Temperature | -55ºC~+85ºC |
| Salt Spray | 48H |

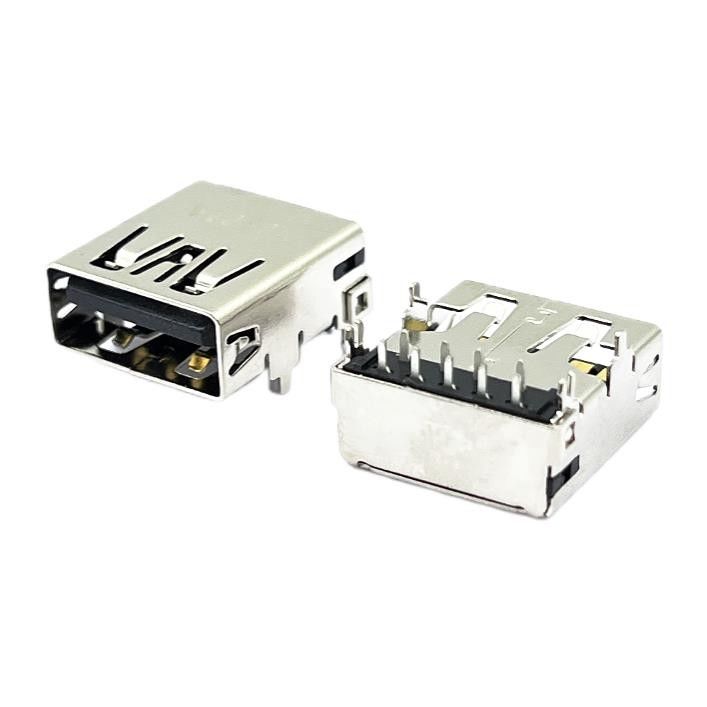

Images:
UB08B-9BA4A-RHA.pdf, if you need the Drawing, pls download it
A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.
Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
