USB Socket Connector
>
|
| Place of Origin | China |
| Brand Name | Jinze |
| Certification | SGS/ROHS |
| Model Number | UB09G-0BA4F-RHA |

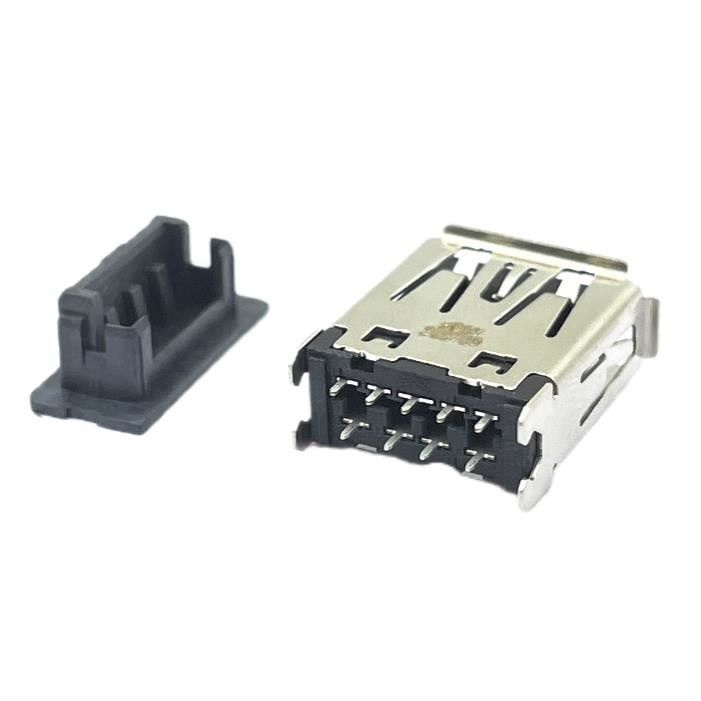

15u" PA10T USB3.1 Micro USB Pcb Socket Pin Out Female H14.5mm
Specifications:
| Housing | PA10T UL94V-0 Black |
| Contact | C2680, T=0.20mm |
| Shell | SUS201, T=0.3mm |
| Contact Plating | Contact Area: Au 1u" |
| 50u" Min. Matte Tin on Soldertails | |
| 30u" Min. Nickel underplating Over All | |
| Shell Plating | Ni 30u" Min Plated |
| Contact Current Rating | 1.8A for Vbus Pin and Tis Corresponding GND Pin |
| 0.25A for All the other contacts | |
| Contact Resistance | 30mΩ Max for VBUS and GND |
| 50mΩ Max for All other contacts | |
| Insulation Resistance | 100mΩ Min. |
| Dielectric Withstanding Voltage | 100VAC R.M.S |
| Mating Force | 35N(3.57Kgf) Max. |
| Unmating Force | Initial 10N(1.02Kgf) Min. |
| After Test 8N(0.816Kg) Min. | |
| Operating Temperature | -40ºC~+85ºC |
| Salt Spray | 48H Pass |
Images:
UB09G-0BA4F-RHA.pdf, if you need the Drawing, pls download it
A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.
