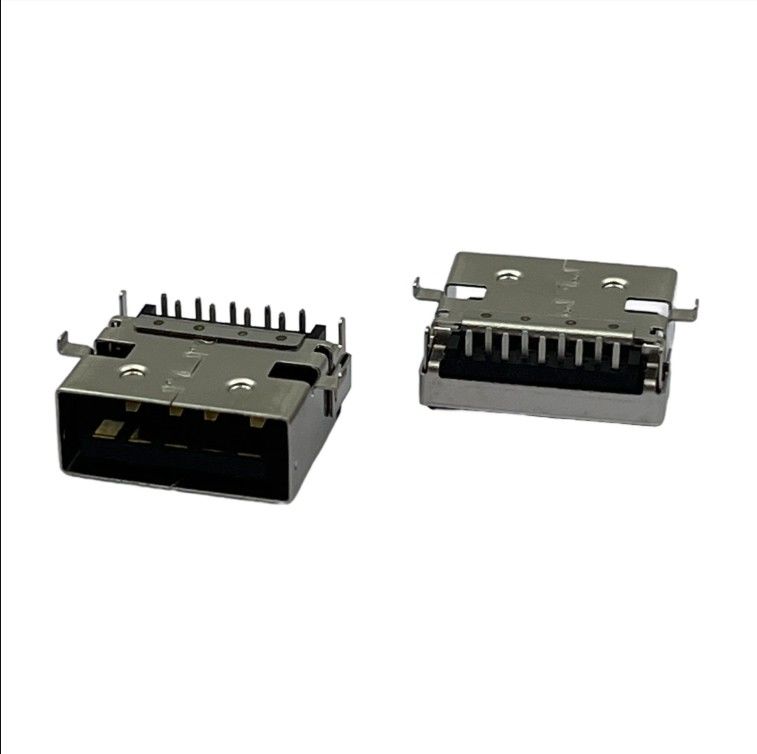

9Pin Female Socket Connector USB3.0

Product Description:

The DIP USB Connector boasts a resistance to reflow soldering heart of 260°+0/-5°, 10s, ensuring that it can withstand even the most extreme soldering conditions. Its plating is made of Gold+80u" Min. Matte-Tin, 50u" Min., which provides excellent conductivity and ensures the longevity of the connector.

With a contact resistance of 30mΩ Max., the DIP USB Connector ensures that your audio signal remains clear and powerful, providing you with an uninterrupted listening experience. It has a current rating of 2.0A (Pin 1, 4), making it capable of handling even high-power audio signals.

The DIP USB Connector is an ideal choice for board to board connections in audio systems, ensuring that your audio signals remain clear and powerful. Its durable construction and resistance to extreme temperatures make it a great choice for use in a variety of applications.

Features:

• Product Name: USB3.1 9P REC STD R/A DIP TYPE GEN2 10G H=5.40MM CH=2.23MM female Socket Connector
• Contact Resistance: 30mΩ Max.
• Current Rating: 2.0A (Pin 1, 4)
• Plating: Gold+80u" Min. Matte-Tin, 50u" Min.
• Initial Force: 3.57Kgf Max

This product is a DIP USB Connector that can be used as an Audio Connector.

Technical Parameters:

Applications:

The Jinze UB53E-LLA5V-THA DIP USB Connector is designed to withstand a dielectric voltage of up to 100V, making it a perfect fit for various electronic devices. The shell is made of SUS304(T=0.2mm), which provides excellent resistance to heat and corrosion. The insulation resistance of this USB connector is 1000 MΩ Min, which ensures that there is no leakage of current. The resistance to reflow soldering heat is 260°+0/-5°, 10s, which makes it ideal for high-temperature applications.

The Jinze UB53E-LLA5V-THA DIP USB Connector has a current rating of 2.0A (Pin 1, 4), which makes it suitable for high-speed data transmission applications. This USB connector can be used in various scenarios such as board to board connector, audio connector, and other electronic devices that require USB connectivity. It is a perfect fit for electronic devices such as laptops, mobile phones, digital cameras, and other devices that require USB connectivity.

In conclusion, the Jinze UB53E-LLA5V-THA DIP USB Connector is a reliable and durable electronic component that is suitable for various electronic applications. It is designed with high-quality materials, and it is manufactured with strict quality control standards. This USB connector is a perfect fit for board to board connector, audio connector, and other electronic devices that require USB connectivity. If you are looking for a high-quality USB connector for your electronic application, then the Jinze UB53E-LLA5V-THA DIP USB Connector is the perfect choice for you.

Support and Services:

The DIP USB Connector product has the following technical support and services available:

• Technical assistance with installation and usage
• Product troubleshooting and problem-solving
• Repair services and replacement parts
• Product warranty and guarantee
• Product documentation and manuals
• Online resources, including FAQs and technical forums

Packing and Shipping:

Product Packaging:

The DIP USB Connector product will be packaged in a small cardboard box with foam inserts for protection. The box will be labeled with the product name and specifications.

Shipping:

The product will be shipped through a reliable courier service and will be securely packaged to ensure safe delivery. Customers will receive a tracking number to track the shipment of their product.

FAQ:

Here are the frequently asked questions and answers for the Jinze DIP USB Connector:

Q: What is the model number of this USB connector?

A: The model number of this USB connector is UB53E-LLA5V-THA.

Q: Where is this USB connector manufactured?

A: This USB connector is manufactured in China.

Q: What certifications does this USB connector have?

A: This USB connector is certified by SGS/ROHS, ensuring its quality and safety.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this USB connector is 1200pcs.

Q: What is the packaging and delivery information for this product?

A: This USB connector is packaged in trays and has a supply ability of 80000pcs per day. Delivery time is 15-25 days, and payment terms are T/T. Price is negotiable.
