IP67 Waterproof Connectors
>
|
| Place of Origin | China |
| Brand Name | Jinze |
| Certification | ROHS/CE |
| Model Number | MP01A-6BB0A-BRA |
Product Description

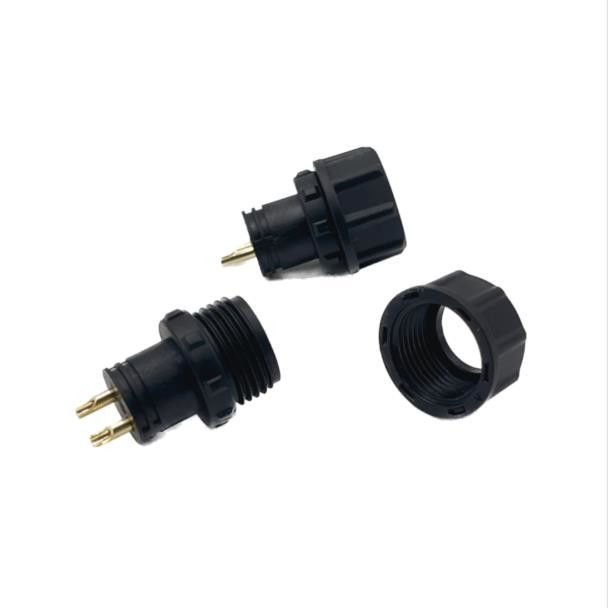

Custom 2 Pin Bulkhead IP67 Waterproof Connectors For Marine Equipment
The M13 6-pin circular connectors are often used in sensor applications, automation systems, industrial equipment, and other devices that require a small form factor connector. They provide a secure and robust connection for transmitting power, data, or control signals between the sensor or device and the host system.
The pins or contacts in the M13 6-pin connectors can be used for various purposes, depending on the specific application requirements. They can carry signals such as analog or digital data, power supply voltages, control signals, or a combination of these.
These connectors typically have a threaded coupling mechanism, which means they require twisting to secure the connection. This threaded design ensures a reliable and vibration-resistant connection, making them suitable for use in harsh environments.
Specifications:
| Current Rating | 8 AMPS |
| Voltage Rating | DC 60V |
| Conductor Diameter | Φ1.5 |
| Adapter Wire | 14AWG |
| Insertion & Retention Force | 3.5KG / 1.5KG |
| Contact Material | Brass |
| Contact Plating | Full Gold Finished |
| Insulator Material | PA9T |
Images
2D Drawing
MP01X-6BB0A-BRA.pdf , This drawing is for 2P to 7P, if you need the Drawing, pls download it!
Please Note:
Free for Plastic Nut, but without Assembly
