| Place of Origin | China |
| Brand Name | Jinze |
| Certification | ROHS/CE |
| Model Number | M8-HS-Fixed Socket |
Product Description

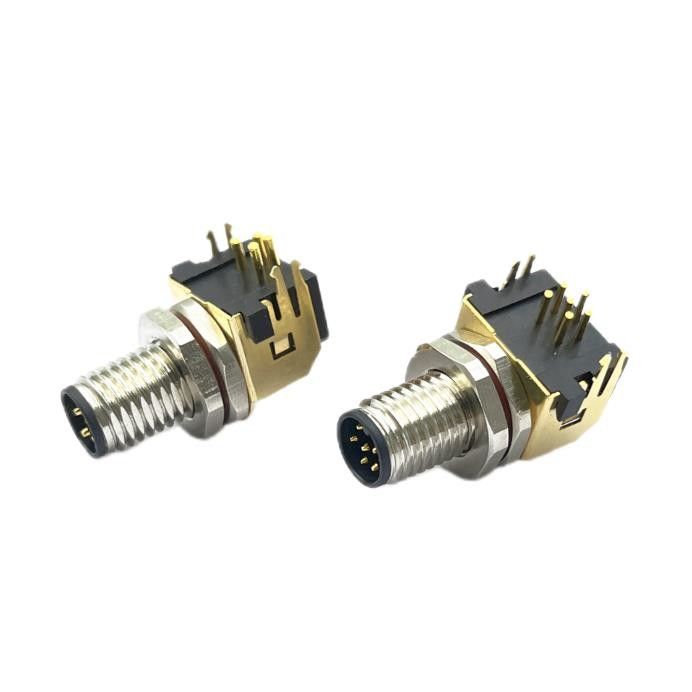

M2-M8 Sensor Connector Receptacle PCB Socket Right Angle Panel Mount
The sensor connector is a physical interface or port that allows a sensor to be connected to a device or system. It provides electrical connections and sometimes mechanical support to ensure a secure and reliable connection between the sensor and the host device.
Circular connectors are widely used in sensor applications due to their robustness and ability to provide a secure connection. Examples of circular connector types include the M8, M12, and M23 connectors.
Specifications:
| IP Rating | IP68 in Locked Condition |
| Insulator | Nylon UL94v-0 Black |
| Seal/O-Ring | Silicone |
| Screw Nut | Copper alloy Nickel Plated |
| Contact Resistance | <=5MΩ |
| Nsulation Restistance | >=100MΩ |
| Temperature Range | -40ºC to +100ºC |
| 2-5P Rating | 60V AC/DC 5A |
| 6~8P Rating | 30V AC/DC 1.5A |
| Dieletric Withstanding Voltage | 500V AC for one minute |
Images
2D Drawing
M8-HS-Male PCB Connector.pdf , This drawing is for 2P to 7P, if you need the Drawing, pls download it!
M8 series connector
Pins Numer: 3 4 5 6 8 pins
Most connectors are excellent for full shielding at 360 degrees
Plug: assembly, overmolded cable type (length can be customized)
Socket: Front Mount Solder Type, Back Mount Solder Type and PCB board type
Waterproof grade: IP68
Products compy with IEC 61076-2-104 standard
