LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring
  • LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring
  • LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring
  • LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring
  • LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring
LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring

LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring

Place of Origin China
Brand Name Jinze
Certification SGS/ROHS
Model Number DP07Q-LBA4V-RHA
Product Details
Housing Material:
LCP UL 94 V-0 HF Black
Contact Material:
C2680, T=0.20mm
Gender:
Receptacle
Application:
Gaming Consoles/Information Technology Sector/ Automotive Industry
Number Of Contacts:
20 Contact
Number Of Ports:
1 Port
Current Rating:
0.5AMP Max
Mounting Angle:
Right Angle
Mounting Style:
PCB Mount
OEM/ODM:
Accepted
Factory Pack Quanity:
330pcs Per Reel
Highlight:

20P DP Socket Connector

,

Solderable LCP DP Socket Connector

,

LCP solderable usb plug

Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiation
Packaging Details
Reel Packaging
Delivery Time
15-25 Days
Payment Terms
T/T
Supply Ability
80000pcs/ Day
Product Description

LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring



Specifications

Housing LCP UL94V-0 Black
Contact Brass (C2680), T=0.20mm
Shield SUS, T=0.40mm
Cover LCP UL 94V-0 Black
Mylar Polyimide
Terminal Finish Au 15u" Plating on Contact Area
  Matte Tin 80u" plating on solder tail
  Under Nickel Plating 50u" Min Over All
Shield 50u" Min. Nickel
Current Rating 0.5A Max
Contact Resistance 40mΩ Max
Insulation Resistance Unmated 100mΩ Min. At 500 VDC
  Mated 10mΩ Min. At 150 VDC
Dielectric Withstanding Voltage 500 V AC/1 Minute
Durabilty 10000 Cycles
Insertion Force 4.5Kgf Max
Withdrawal Force 1-5 Cycles Mating 2.0-4.0Kgf
Operation Temperature -20°C~+85°C



Images:

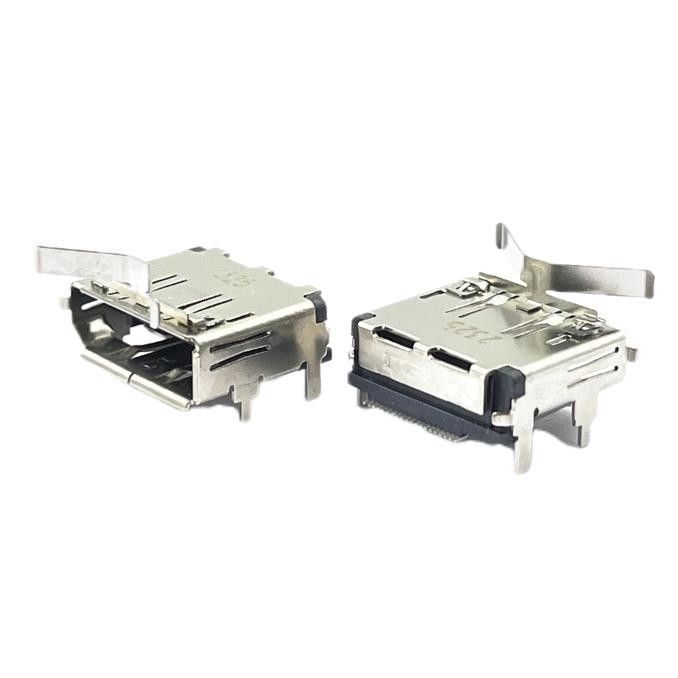

LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring 0

LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring 1

LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring 2

Drawings:

LCP 20P DisplayPort DP Socket Connector Solderable USB Plug With Spring 3

DP07Q-LBA4V-RHA.pdf,  if you need the Drawing, pls download it





Features and Benefits



• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB



Product Application Information



These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations


Is this socket protected against interference?


Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
