LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u"
  • LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u
  • LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u
  • LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u
  • LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u
LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u

LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u"

Place of Origin China
Brand Name Jinze
Certification SGS/ROHS
Model Number DP22A-LBA2M-RHA
Product Details
Material:
LCP UL 94 V-0 HF
Color:
Black
Gender:
Receptacle (Female)
Application:
Information Technology Sector/ Automotive Industry/ Gaming Consoles
Number Of Contacts:
20 Contact
Number Of Ports:
1 Port
Current Rating:
0.5AMP Max
Mounting Angle:
Right Angle
Mounting Style:
PCB Mount
Factory Pack Quanity:
330pcs Per Reel
OEM/ODM:
Yes
Highlight:

LCP DP Socket Connector

,

SMT DP Socket Connector

,

LCP solder usb connector

Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiation
Packaging Details
Reel Packaging
Delivery Time
15-25 Days
Payment Terms
T/T
Supply Ability
80000pcs/ Day
Product Description

LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u"



Specifications

Housing LCP UL94V-0 Black
Terminal Brass (C2680)
Shield S50C, Cu120u+Ni 120u" Plating
Terminal Finish Au 1u" Plating On Contact Area
  Matte Tin 80u" plating on solder tail
  Under Nickel Plating 50u" Min Over All
Current Rating 0.5 A Max.
Dielectric Withstanding Voltage 500V AC R.M.S For one minute
Insulation Resistance

100M OHMS MAX.
Operationg Temperature -20℃ To +85℃
Insertion Force 4.5kgf Max.
Salt Spray 24 Hours Pass



Images

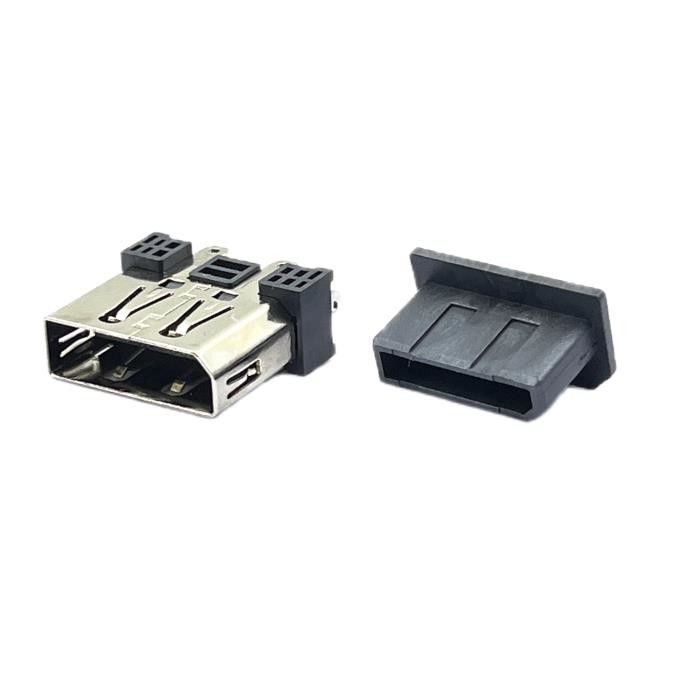

LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u" 0

LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u" 1LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u" 2

Drawings:

LCP Solder Displayport DP Socket Connector 180 Degrees SMT Au 1u" 3



DP22A-LBA2M-RHA.pdf,  if you need the Drawing, pls download it



Features and Benefits



• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB



Product Application Information



These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations


Is this socket protected against interference?


Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
