Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle
  • Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle
  • Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle
  • Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle
  • Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle
Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle

Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle

Place of Origin China
Brand Name Jinze
Certification SGS/ROHS
Model Number DP14A-LBA2R-RHB
Product Details
Material:
LCP UL 94 V-0 HF
Color:
Black
Gender:
Receptacle (Female)
Application:
Information Technology Sector/ Automotive Industry/ Gaming Consoles
Number Of Contacts:
20 Contact
Number Of Ports:
1 Port
Current Rating:
500mA
Mounting Style:
PCB Mount
Factory Pack Quanity:
330pcs Per Reel
OEM/ODM:
Yes
Termination Method:
Solder
Connector System:
Wire To Board
Highlight:

0.5AMP DP Socket Connector

,

DP Socket Connector Receptacle

,

solder mini usb Receptacle

Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiation
Packaging Details
Reel Packaging
Delivery Time
15-25 Days
Payment Terms
T/T
Supply Ability
80000pcs/ Day
Product Description

Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle



Specifications

Housing LCP UL94V-0 Black
Contact Brass (C2680), T=0.20mm
Shield C2680, T=0.40mm
Cover LCP UL 94V-0 Black
Mylar Polyimide
Terminal Finish Goldflash 0.8u" Min. on Contact Area
  Matte Tin 50u" plating on solder tail
  Under Nickel Plating 50u" Min Over All
Shield 50u" Min. Nickel underplated Overall



Images:

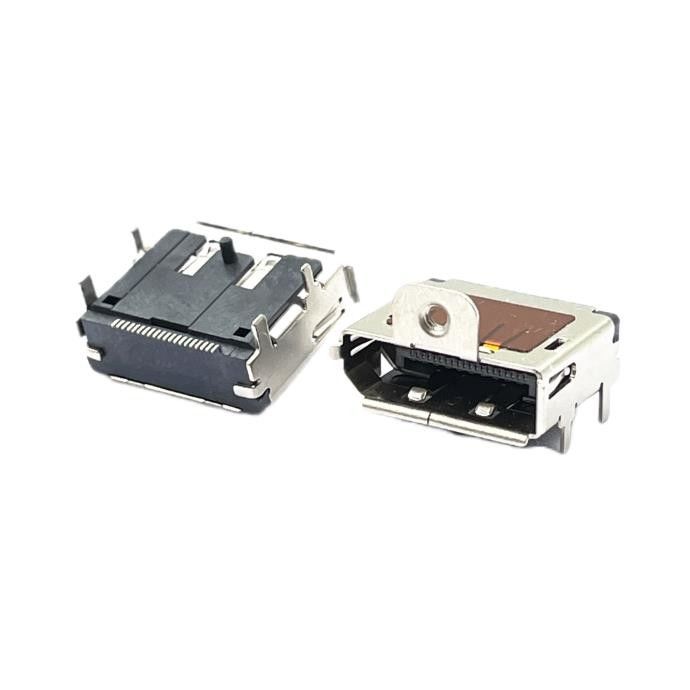

Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle 0

Drawings:

Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle 1



DP14A-LBA2R-RHB.pdf,  if you need the Drawing, pls download it!



Features and Benefits



• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB



Product Application Information



These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations


Is this socket protected against interference?


Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
