Female Displayport Micro USB Solder Connector 180 Degrees SMT DIP

Name: Female Displayport Micro USB Solder Connector 180 Degrees SMT DIP
Brand: Jinze
SKU: DP19D-LBA2M-RHA
Rating: 4.5 (193 reviews)

Place of Origin	China
Brand Name	Jinze
Certification	SGS/ROHS
Model Number	DP19D-LBA2M-RHA

Product Details

Material:

LCP UL 94 V-0 HF Black

Gender:

Female

Application:

Information Technology Sector/ Automotive Industry/ Gaming Consoles

Number Of Contacts:

20 Contact

Current Rating:

500mA

Mounting Angle:

Right Angle

Mounting Style:

PCB Mount

Factory Pack Quanity:

330pcs Per Reel

OEM/ODM:

Accepted

Terminal:

Brass (C2680)

Highlight:

DIP micro usb solder connector

SMT micro usb solder connector

DIP micro usb female connector solder

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Price

Negotiation

Packaging Details

Reel Packaging

Delivery Time

15-25 Days

Payment Terms

T/T

Supply Ability

80000pcs/ Day

Product Description

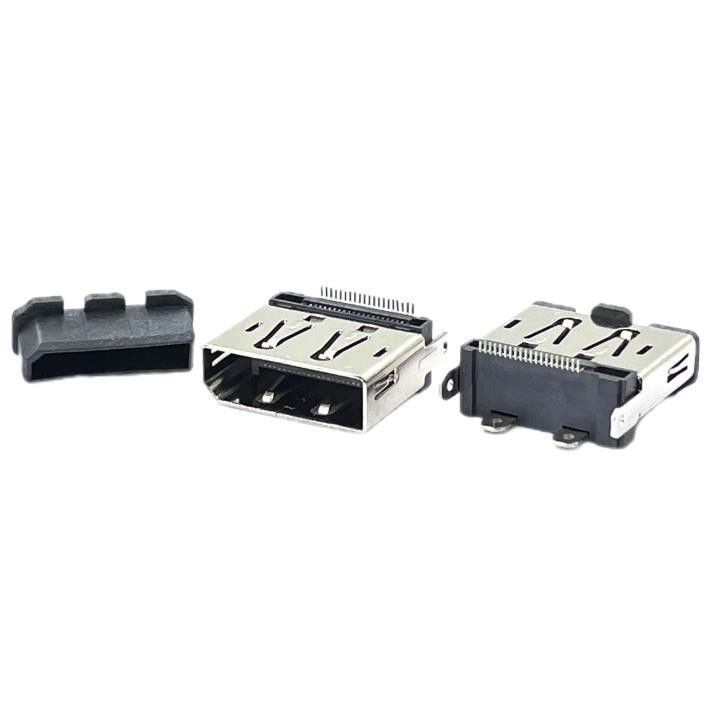

Female Displayport Micro USB Solder Connector 180 Degrees SMT DIP

Specifications

Housing	LCP UL94V-0 Black
Contact	Brass (C2680), T=0.20mm
Shield	C2680, T=0.40mm
Spacer	LCP, UL 94V-0
Terminal Finish	Goldflash 0.8u" Min. on Contact Area
	Matte Tin 50u" plating on solder tail
	Under Nickel Plating 50u" Min Over All
Shield	50u" Min. Nickel underplated Overall

Images:

Drawings:

DP19D-LBA2M-RHA.pdf, if you need the Drawing, pls download it

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
