100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin
  • 100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin
  • 100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin
  • 100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin
  • 100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin
100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin

100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin

Place of Origin China
Brand Name Jinze
Certification SGS/ROHS
Model Number DP01J-LBB16-RHB
Product Details
Material:
LCP UL 94 V-0
Color:
Black
Gender:
Receptacle (Female)
Application:
Information Technology Sector/ Automotive Industry/ Gaming Consoles
Number Of Contacts:
20 Contact
Current Rating:
0.5AMP
Mounting Angle:
Right Angle
Mounting Style:
PCB Mount
Factory Pack Quanity:
330pcs Per Reel
Highlight:

100V DP Socket Connector

,

5Pin DP Socket Connector

,

100V 5 pin usb connector

Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiation
Packaging Details
Reel Packaging
Delivery Time
15-25 Days
Payment Terms
T/T
Supply Ability
80000pcs/ Day
Product Description

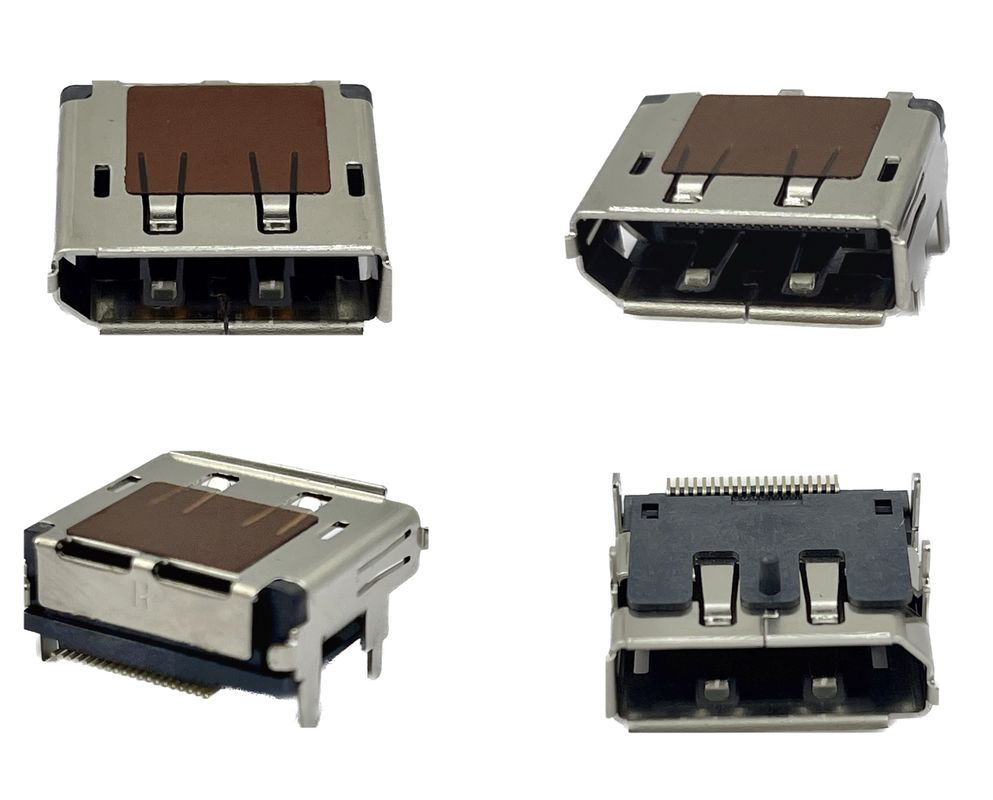

20P SMT DP Receptacle 4 legs DIP Female Diplayport Connector 90 Degree



Current Rating 0.5AMP
Contact Resistance 40mΩ Max
Dielectric Withstanding Voltage 100V AC / 1Minute
Insulation Resistance 100mΩ Min
Operation Temperature -20℃ to +85℃
Contact Material Brass
Contact Plating Au or Sn over Ni
Insulator Material LCP



Drawings:

100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin 0100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin 1

Drawings:

100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin 2

2D Drawing DP01J-LBB16-RHB.pdf   if you need the Drawing, pls download it

ENG-SS-DP01J-LBB16-RHB.pdf     if you need the product Specification, pls download it



Application



Products are widely used in banking equipment, computer communication, advertising machine, automotive electronics, smart wear/watch, STB.





Features and Benefits



• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB



Product Application Information



These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations


Is this socket protected against interference?


Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
